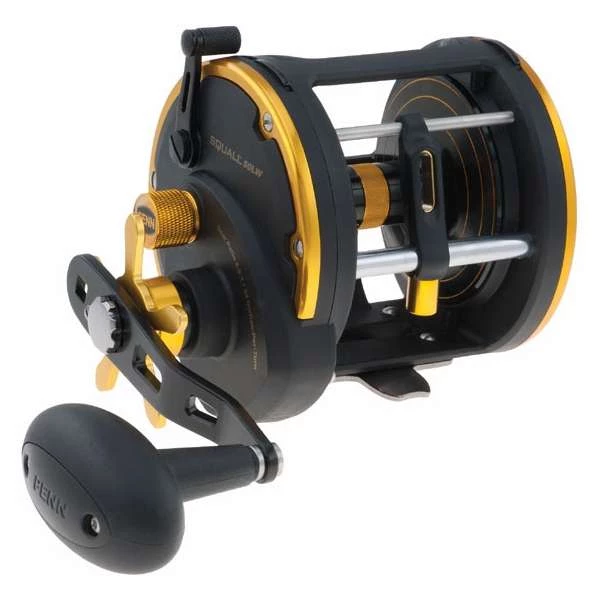

Gator Jim’s Penn Squall 50LW Conventional Reel – 50LW

Penn Squall Level Wind Reels are intended to be successors to the proven GT reels, but with a few upgrades. Penn has added an Infinite Anti Reverse bearing, Line Capacity Rings, and their Versa-Handle. And a machined brass main gear mates to a high strength stainless steel pinion gear, giving the reel a perfect combination of strength and smoothness.

• Lightweight graphite frame and sideplates
• Forged and machined aluminum spool
• High-strength marine grade bronze alloy main gear
• Stainless steel pinion gear
• HT-100 carbon fiber drag washers
• 2+1 Shielded stainless steel bearing system
• Instant Anti-Reverse bearing with silent back up ratchet
• Line Capacity Rings
• Left-hand models: SQL20LWLH & SQL30LWLH
• Line Counter model: SQL20LWLC

Specs:

PRODUCT CODE	BRAID LINE CAPACITY (#TEST/YD)	MONO LINE CAPACITY (#TEST/YD)	WEIGHT (OZ)	LINE RETRIEVE PER CRANK (IN)	GEAR RATIO	MAX DRAG (LB)
SQL15LW	580/20 435/30 305/50	320/15 280/17 220/20	16.2	N/A	4.9:1	15lb | 6.8kg
SQL20LW	865/20 650/30 455/50	415/17 315/20 290/25	16.9	N/A	4.9:1	15lb | 6.8kg
SQL20LWLH	865/20 650/30 455/50	415/17 315/20 290/25	16.9	N/A	4.9:1	15lb | 6.8kg
SQL20LWLC	865/20 650/30 455/50	415/17 315/20 290/25	17.8	N/A	4.9:1	15lb | 6.8kg
SQL30LWLH	1020/30 710/50 590/65	455/25 370/30 285/40	20.9	N/A	4.9:1	20lb | 9.0kg
SQL50LW	900/65 775/80 665/100	435/40 320/50 285/60	24.6	N/A	4.0:1	20lb | 9.0kg
