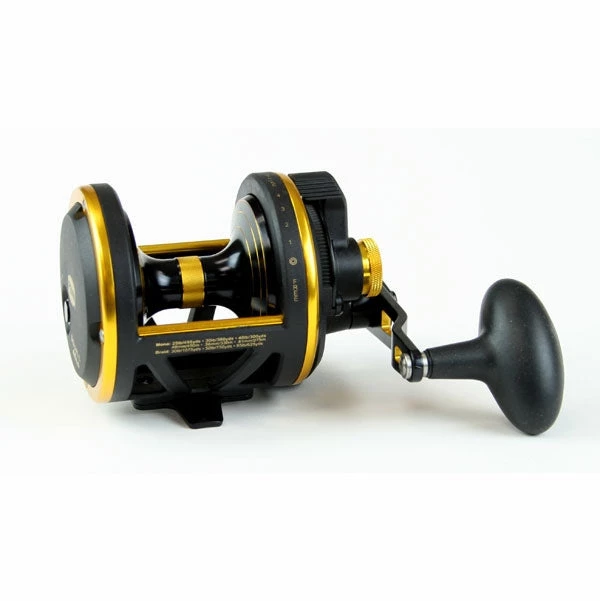

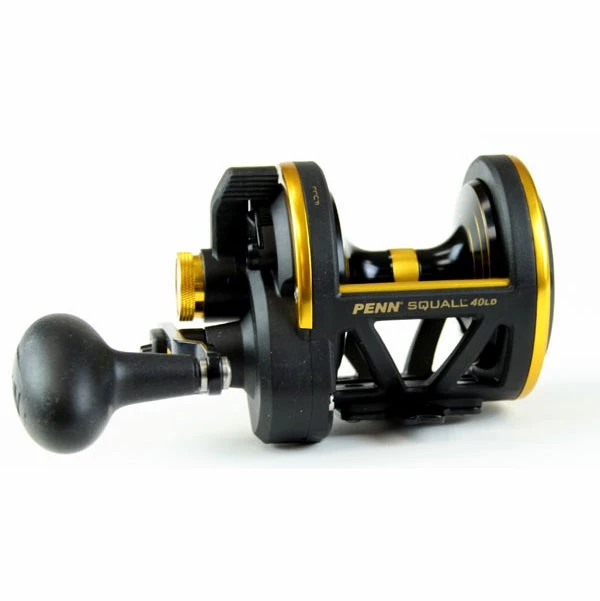

Gator Jim’s Penn SQL40LD

Penn designed the Squall Lever Drag reels with function and ergonomics at the top of the list. The lever drag does not protrude above the frame of the reel. This means there is no way for the line to loop over and hang up on the lever of the Squall Lever Drag.

• Lightweight graphite frame and sideplates
• Forged and machined aluminum spool
• High-strength marine grade bronze main and pinion gear
• Dura-Drag washers virtually eliminate hesitation, even underextreme drag settings
• Switchblade harness lugs (50 & 60 sizes only)
• Ratcheted drag lever prevents ”drag creep” caused by hours of trolling and vibrations
• Line Capacity Rings
• 5+1 Shielded stainless steel bearing system
• Instant anti-reverse bearing with silent back up ratchet

Penn Squall Lever Drag Innovative Features:

• Versa-Handle System – Are you bottom fishing or trolling? Are you looking for power or speed? Penn’s Versa-Handle System allows the angler to choose how long the handle should be in less than a minute; tools are included with each reel. Assemble the reel in the long position for more power; assemble in the short position for more speed, your choice.
• Line Capacity Rings eliminate the question of how much line you have left when fighting a fish. The three lines on the spool flange let you know when you have 1/3rd, 2/3rd, or a full spool of line. Also if you respool often these lines give you a benchmark for backing your superlines with monofilament which will help eliminate wasted time and line.
• Switchblade Harness Lugs give you all the benefits of traditional lugs without the risk of grabbing loose line and potentially breaking off fish. When the lugs are not in use they remain flush with the reel frame, when you need them they easily pop up with the tip of your finger. The other benefit of the proprietary Switchblade harness lugs is basic ergonomics. Let’s face it, harness lugs can be uncomfortable when you are palming the reel on the cast or retrieve. If you don’t plan to use the lugs then stow them in the down position and you have one of the most ergonomic reels on the market. Included on 50 & 60 sizes only.

Specs:

PRODUCT CODE	BRAID LINE CAPACITY (#TEST/YD)	MONO LINE CAPACITY (#TEST/YD)	WEIGHT (OZ)	LINE RETRIEVE PER CRANK (IN)	GEAR RATIO	MAX DRAG (LB)
SQL30LD	1025/20 775/30 550/50	390/20 350/25 260/30	18.2	37	6.1:1	13lb | 5.8kg
SQL40LD	1075/30 750/50 625/65	490/25 360/30 300/40	20.9	37	5.1:1	20lb | 9.0kg
SQL40LDLH	1075/30 750/50 625/65	490/25 360/30 300/40	20.9	37	5.1:1	20lb | 9.0kg
SQL50LD	1050/50 875/65 750/80	500/30 420/40 310/50	27.4	35	4.3:1	27lb | 12.2kg
